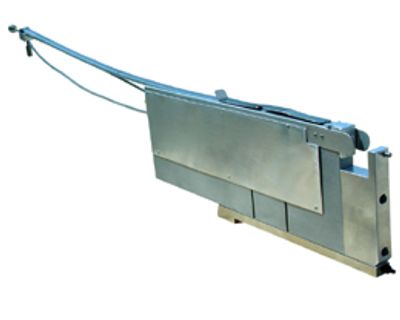

Applicable Quad/Tyco Models: All Q and C Series Placement Machines
.40" Feeder Slots Required: 2 for Single Feeder, 3 for Dual Feeder
Maximum Component Width: 8mm
Maximum Component Length: 10mm
Refresh Time: Approximately 1/2 second
Operator Interface: Load Push Button
Mounting: Spring loaded latch into dovetail feeder mount
Electrical Connection: Supplied with 24VDC wall plug power transformer
Compressed Air Connection: 1/8 OD tube from feeder needs to be connected to                                               clean, dry, 60-80 PSI compressed air
